CARSON TIP-TRAILER, FOR 3 AXEL TRUCK

Help for the heavy things of the daily routine- the CARSON basin dumper.

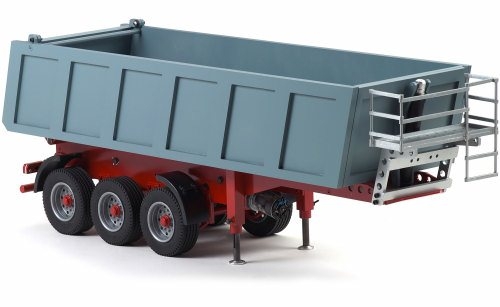

The CARSON dumper semi-trailer in scale 1:14.5 is a detailed model of the dumpers, used in the local traffic of construction sites.

Load up your dumper semi-trailer and off you go with a truckload of sand, flint or stones to the next construction site or a stone pit. With the separately availabe dump-mechanics (spindle drive with shaft joint Item 907056) the basin can be dumped respectively the load unloaded. After lowering of the basin, the back wall is secured automatically with a 2-hook locking.

Scope of delivery:
assembly kit . detailed manual

 Technical Details:

• Basin and back wall made of reinforced PVC, CNC-milled
• suspension of GFK with horizontal rods
• air-spring dummy (screw springs)
• aluminium chassis CNC-milled
• 12 ball-bearings
• 6 trailer rims wide
• 6 wide tires for trailer rims
• 7-chamber tail lights
• license plate mount lightened
• plastic fenders with mount
• automatical 2-hook back wall locking
• aluminium underbody protection CNC-milled
• trailer supports mechanically adjustable
• support plastic/metal composite construction CNC-milled
• hydraulic cylinder dummy
• Measurements (L x W x H) 700 x 185 x 235 mm
• tire width 25 mm
• tire outer-Ø 82 mm
• weight 4.600 g
• max. load approx. 10.000g
