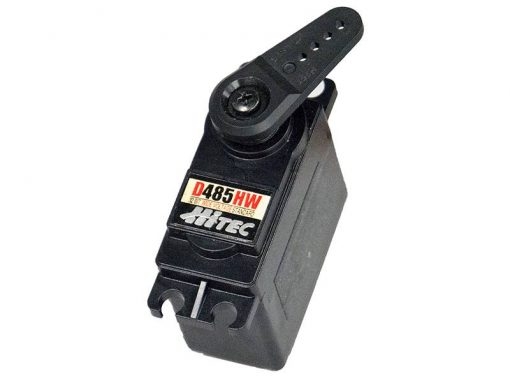

D-485HW SERVO

Artikkelnr.: 5-36485

NOK489,00 inkl. mva.
På lager
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)
Product Description

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

D485HW Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
Speed (Second @ 60°) 0.20 ~ 0.15
Maximum Torque Range oz. / in. 67 ~ 103
Maximum Torque Range kg. / cm. 4.8 ~ 7.4
Current Draw at Idle 30 mA
No Load Operating Current Draw 320mA
Stall Current Draw 1,500mA
Dead Band Width N / A
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 X 19.8 X 38.0

Weight (Gram) 45.0
Circuit Type 32 bit Programable Digital
Motor Type 3 Pole Cored Carbon Brush
Gear Material MK 1st Gear & 3 Karbonite  Resin Gears
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) 25 / 6
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count N / A
