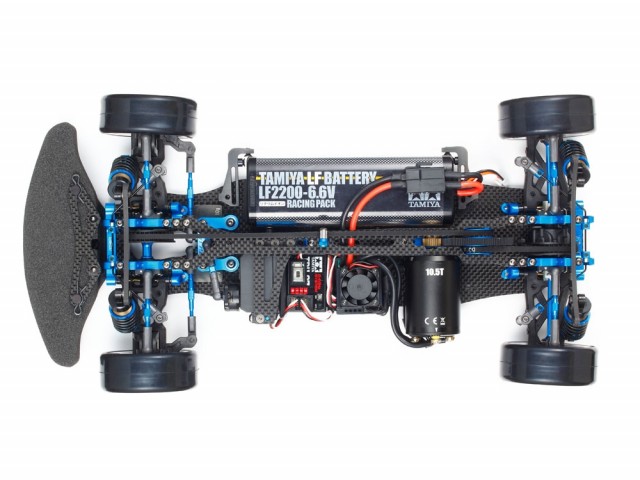

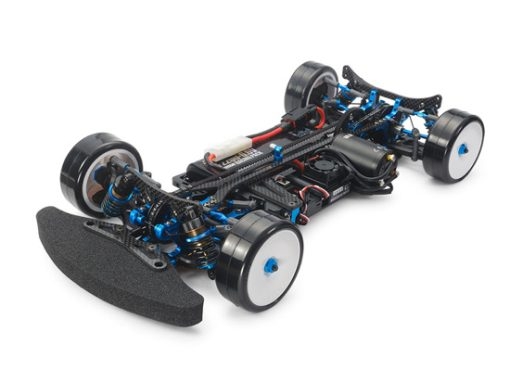

Length: 370mm. Image shows assembled kit.
Body, motor, pinion gear, wheels, tires, R/C equipment, battery pack and charger sold separately.
The Best Continues to Evolve
The thoroughbred 2 belt-driven 4WD TRF419 chassis series makes another evolutionary leap with the TRF419XR, featuring refinements inspired by experience from the record-setting TRF (Tamiya Racing Factory) team, designed to enhance cornering speed and steering response. Refined carbon fiber lower (2.25mm thick) and upper (2mm thick) decks optimize the roll point, while a new center pitch stiffener allows adjustment of pitch rigidity. Front and rear stabilizer bars are secured with ball bearings for precise, repeatable setup changes. A cooling fan mount comes as standard, as do carbon fiber damper stays for TRF dampers and the included TRF super short big bore dampers and an LF battery ballast weight. Center shaft thickness is now 5mm, and screws are 3mm for even more secure attachment and ease of upkeep. |
Featured Components
★2.25mm-thick Carbon Fiber Lower Deck ★2mm-thick Carbon Fiber Upper Deck ★Aluminum Bulkheads ★Aluminum Motor Mount ★Aluminum Steering Bridge ★Aluminum Steering Arms ★Front/Center Direct Drive ★Rear Gear Differential Unit ★Front Double Cardan Universal Shafts ★Rear Universal Shafts ★TRF Super Short Big Bore Dampers & Dedicated Carbon Damper Stays ★TRF Damper-compatible Carbon Damper Stays ★Front/Rear Stabilizers (Ball Bearing-secured) ★TRF419 D Parts (Suspension Arms) ★TRF419 E Parts (Rear Uprights) ★Aluminum Suspension Mounts (05G, 05G, 1XA, 1E) ★Clamp-Type Aluminum Wheel Hubs (4mm thick) ★Tamiya LF Battery Holder (doubles as ballast) ★Aluminum Turnbuckle Shafts ★Full Ball Bearings |
 |
|
 |
|

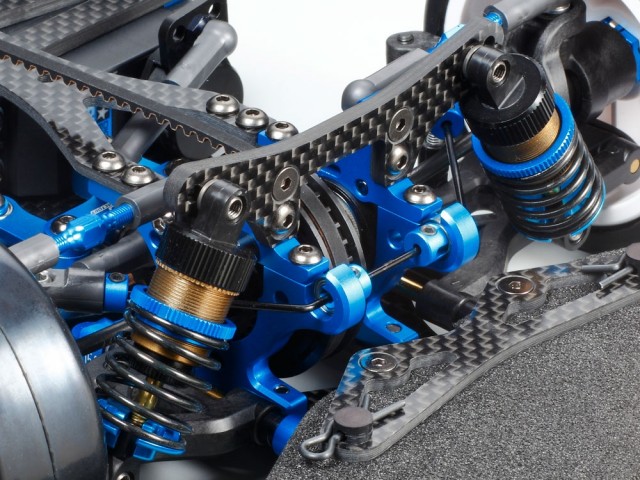

★Left: Front and rear stabilizers offer precise setups which are also easily repeatable.

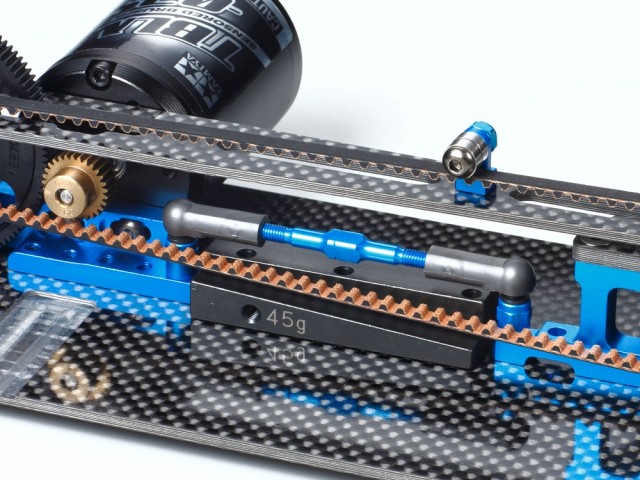

★Right: Center stiffener offers a choice of carbon fiber plate or adjustable turnbuckle shaft.
|
 |
|
 |
|

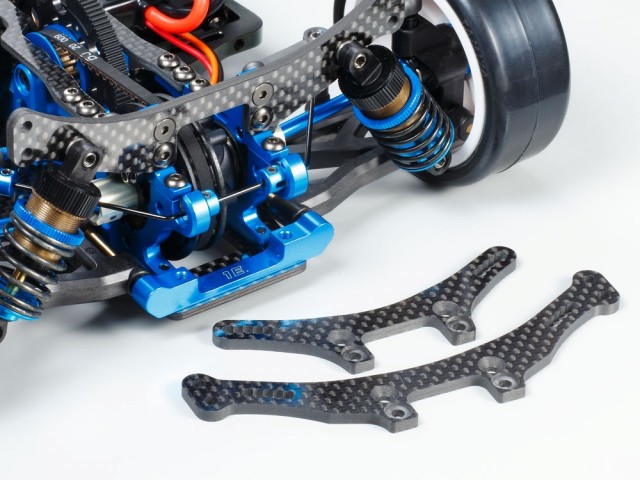

★Left: 2 damper stay sets (for TRF Dampers or Super-Short Big-Bore Dampers) are included.
★Right: Refined carbon fiber decks are employed to optimize the chassis’ roll point.
|
Specifications
★Length: 370mm ★Width: 187mm ★Wheelbase: 254mm ★Carbon Fiber Double Deck Frame (Upper: 2.25mm, Lower: 2mm) ★Transverse Motor ★2 Belt-Driven 4WD ★3-Piece Steering Tie-Rod ★Front Direct Drive ★Rear Gear Differential Unit ★4-Wheel Independent Double Wishbone Suspension ★TRF Super Short Big Bore Dampers |
Separately Required Items
★Body ★Brushless Motor ★04 Module Pinion Gear ★Tires ★Wheels ★2-channel R/C system with ESC ★Batteries for transmitter ★Battery Pack and Charger |
