TOP FORCE EVO 1/10 (2021) Radiostyrt Elektrisk Bil 1:10

Artikkelnr.: 47470

TOP FORCE EVO 1/10 (2021)

NOK5 489,00 inkl. mva.
På lager
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

Top Force Evo. Kommer som byggesett.

TBLE-04S fartskontroller og 540 motor medfølger.

Må kompletteres med:

  • Radio og mottaker
  • Servo
  • NiMH eller LiPO batteri
  • Batterilader

Anbefales:

  • Kulelagre: 2stk 730 (3x7x3), 10stk 850 (5x8x2.5), 16stk 1150 (5x11x4)

Fra produsenten:

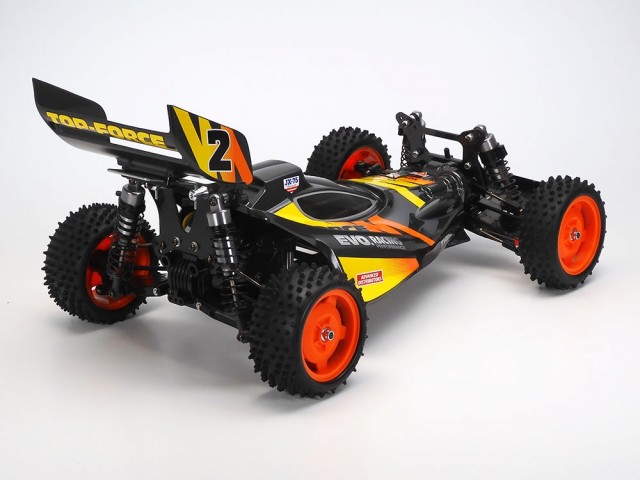

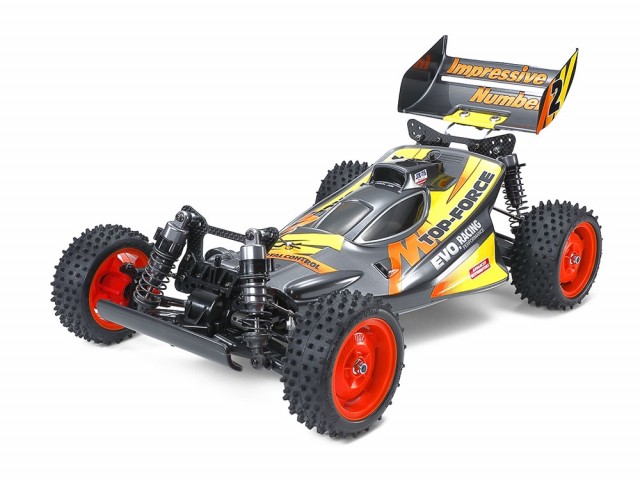

Length: 400mm. Image shows assembled kit.

Impressive Indeed!
This R/C model assembly kit is a re-released and updated version of Top-Force EVO., a buggy first released in 1992. Its honed body and rear wing are molded in polycarbonate pre-painted in gun metal color, the shaft-driven 4WD drivetrain employs three differentials amd universal drive shafts, and the chassis is based around a rigid and lightweight carbon fiber double-deck frame with damper stays and battery plates crafted in the same material. The model is compatible not only with 7.2V Racing Pack products, but also the LF2200-6.6V Racing Pack.



Race-Oriented Shaft-Driven 4WD Chassis
This chassis features a race-oriented design with a lightweight carbon fiber double-deck layout that supports the gearboxes with 2mm thickness carbon fiber plates. A drivetrain with ball differentials front and rear and center one-way contributes towards sharp steering response, while front and rear assembly type universal shafts offer superior efficiency. Four-wheel independent double wishbone suspension employs oil dampers with aluminum cylinders, while turnbuckle upper arms allow camber adjustment. Vibrant orange wheels are paired with grippy spike tires.




★This model features a highly refined polycarbonate body design that oozes speed; stickers are included in the kit to decorate it.

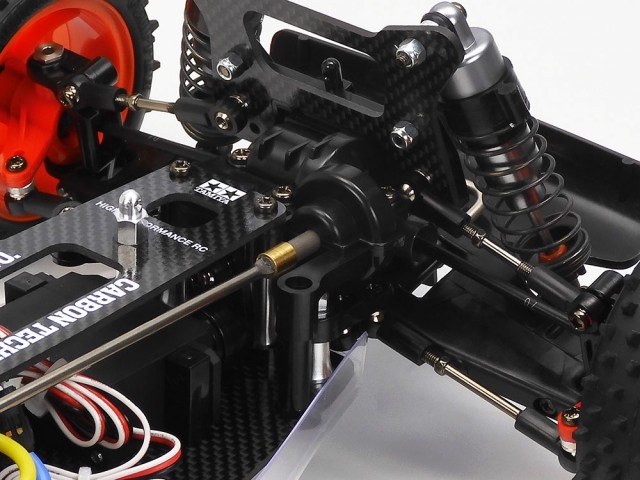

★A 4WD setup employs a steel propeller shaft to the right of the upper deck. Drivetrain and steering linkage feature efficient ball bearings.

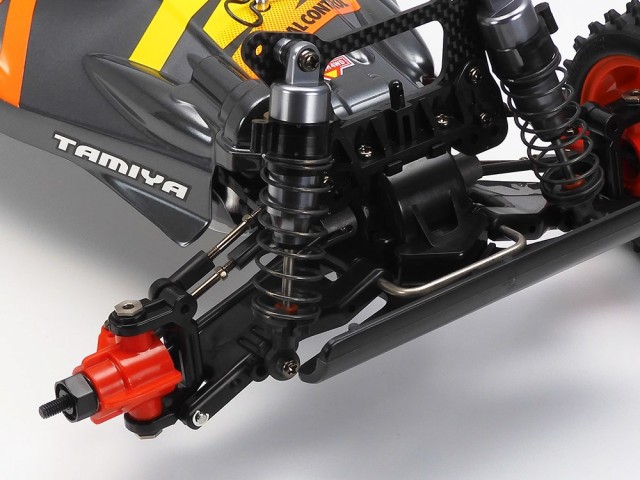

★This image gives a close-up on the front double wishbone suspension, which also features turnbuckle shaft upper arms for easy adjustment.




★Upper and lower decks, plus front and rear damper stays, and battery plates are crafted in lightweight, rigid carbon fiber material.

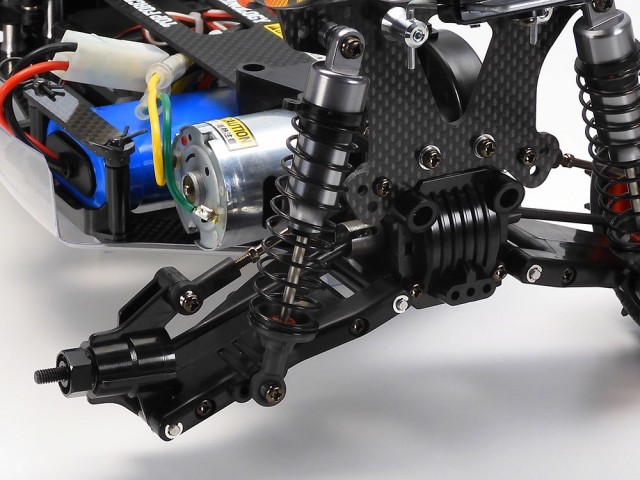

★This image of the double-wishbone rear suspension shows off the dampers with aluminum cylinders. Universal drive shafts are employed front and rear.

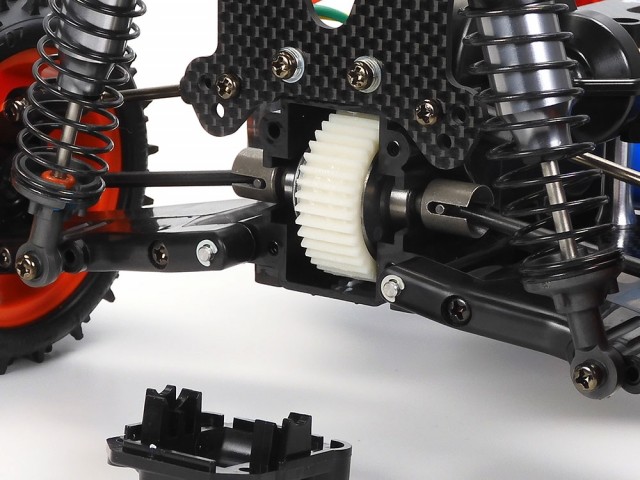

★Gear covers can be removed simply with the loosening of four screws, allowing easy access to the differentials for swift maintenance.

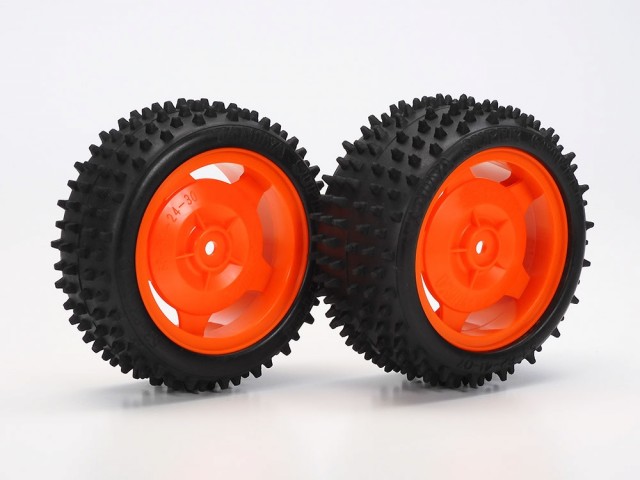

★Alluring, vibrant orange color dish design wheels are paired with spike tires that ensure the Top-Force Evo. has plenty of grip.

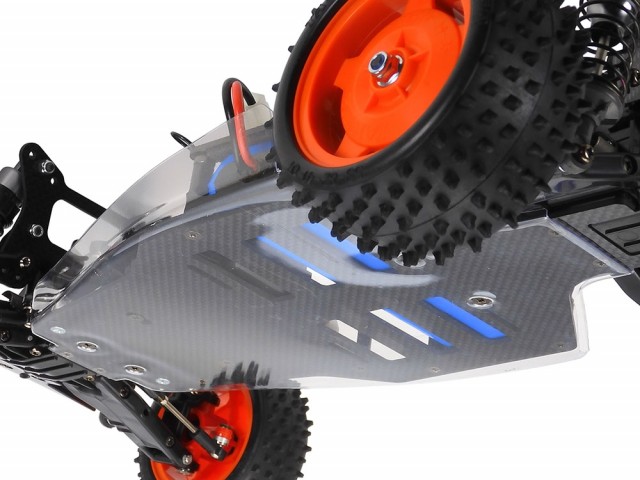

★There is exemplary protection from dust, dirt and other potential infiltrators thanks to the kit’s tough polycarbonate undercowl.

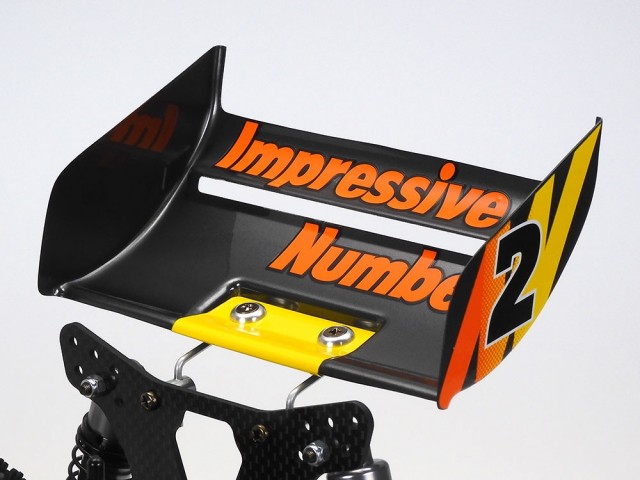

★An epic polycarbonate wing on the rear of the buggy features integrated end plates and a slatted design that really looks the part.



Specifications
★Length: 400mm, width: 250mm, height: 190mm ★Wheelbase: 270mm ★Tread: 217mm (front), 205mm (rear) ★Carbon fiber double deck frame ★Shaft-driven 4WD ★Front & rear ball differentials ★Center one-way ★3-Piece steering tie-rod (with ball bearings) ★4-Wheel independent double-wishbone suspension ★Tire Width/Diameter: 32/82mm (front), 41/82mm (rear) ★Aluminum cylinder oil dampers ★Gear Ratio = 8.59:1 ★Type 540 motor ★Full ball bearings ★Electronic Speed Controller (ESC) is sold separately.



Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
