TT-02 Type-SRX Chassis Kit er en oppgradert versjon av TT-02 Type-S-serien med forbedret holdbarhet og ytelse for racing.
Dette er en flott førstegangsbil for den som ønsker å prøve seg på RC-Racing
Dette chassis -settet bruker elementer 22049 og 22047 med oppdaterte deler. Deler inkludert i dette kit’et ble også valgt for brukere som ønsker å lære oppsett før de går videre og klatrer oppover stigen til Tamiya-chassissett på mellomnivå. (Mer kostnadseffektivt enn å kjøpe hver del hver for seg)
Fra produsenten:

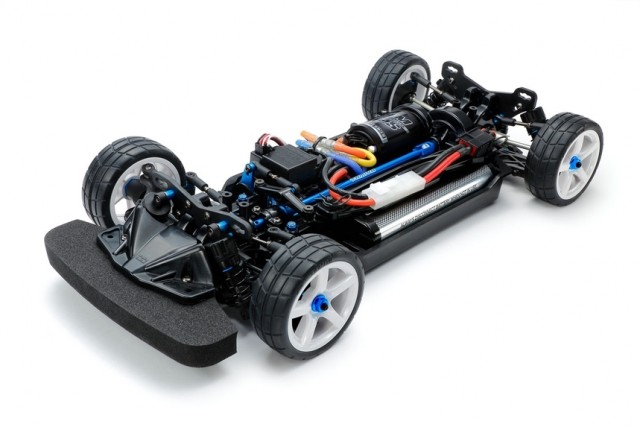

Length: 361mm. Image shows assembled kit.
*Motor, tires, R/C equipment, battery pack and charger are sold separately.
Racy TT-02
This kit sees the versatile beginner chassis TT-02 paired with a host of Hop-Up Options and other parts to raise its racing ability and tuneability. The efficient drivetrain employs a front direct coupling and double cardan drive shafts, with a rear oil gear differential. TRF420 design suspension arms give great feedback during your drive, and the rear suspension can be fine-tuned via its adjustable mount. Its 27T pinion and 68T spur gears give a gear ratio of 6.55:1. |
Featured Components
New aluminum propeller joints
Item 22054 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
Item 22049 XV-02/TT-02 Oil Gear Differential Unit
Item 22047 XV-02/TT-02 Front Direct Coupling Set (39T)
Item 54981 06 Module Hard Coated Aluminum Pinion Gear (27T)
Item 54886 TRF419 Suspension Upgrade Set
Item 54799 TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
Item 54501 TT-02 Aluminum Propeller Shaft
Item 54500 TT-02 High Speed Gear Set (68T)
Item 53823 Clamp Type Aluminum Wheel Hub (5mm Thick)
Item 53576 TRF Damper Oil Seal (4pcs.)
Item 42357 Cross Joints for Low Friction Assembly Universal Shafts
Item 42323 Short Ball Connector Nuts for TRF Dampers (8pcs.)
Item 42143 4mm Aluminum Serrated Wheel Nut (4pcs./Blue) |
Detailed Images

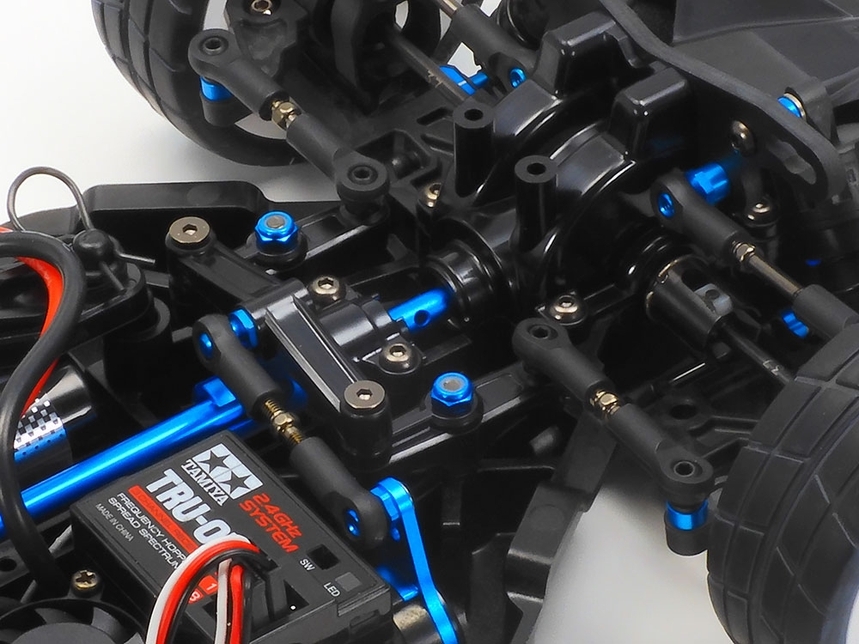

★The kit comes with a hi-torque servo saver as standard, to help protect the servo and steering linkage from damage. |
|

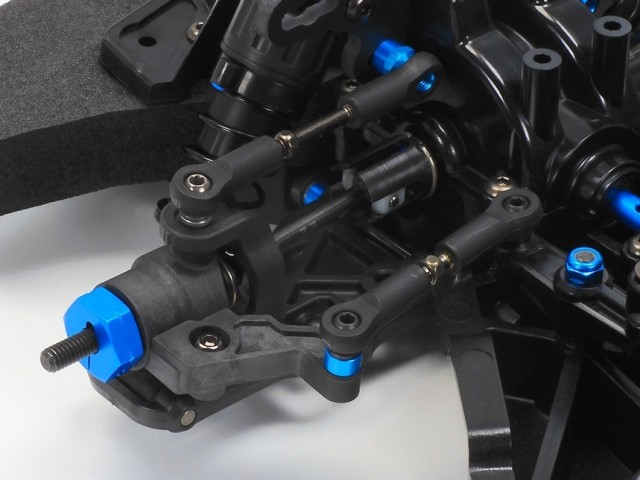

★TRF420 design suspension arms and uprights are employed, with drouble cardan drive shafts. |
|

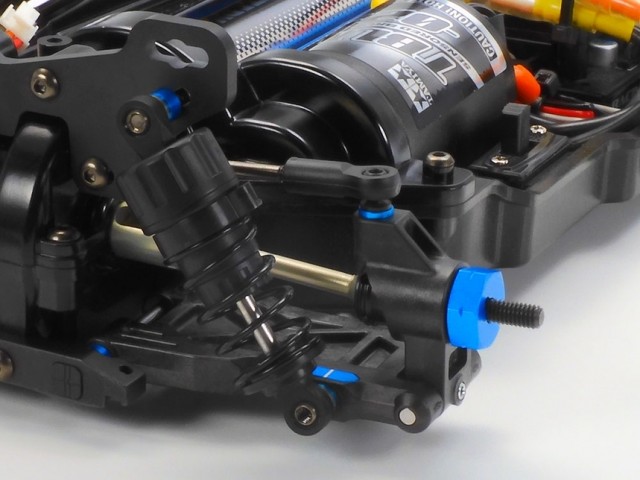

★Dampers have a choice of three each of upper and lower attachment points: fine-tune to your heart’s content! |

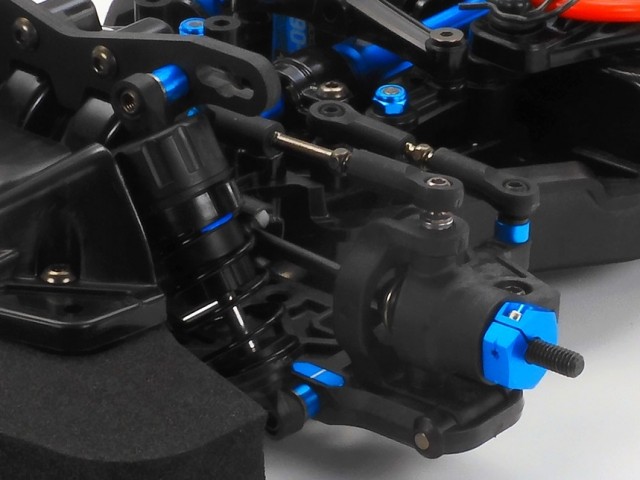

★The front direct coupling gives stable handling, and here is paired with durable, dedicated joint cups. |
|

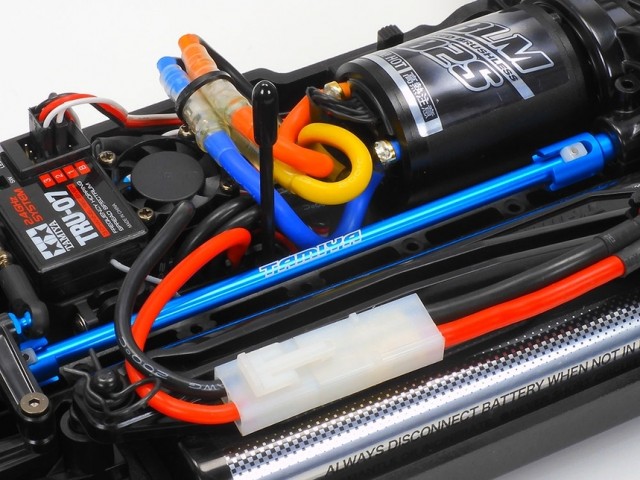

★An aluminum propeller shaft is joined by propeller joints designed specially for use with the included plastic anti-wear caps. |
|

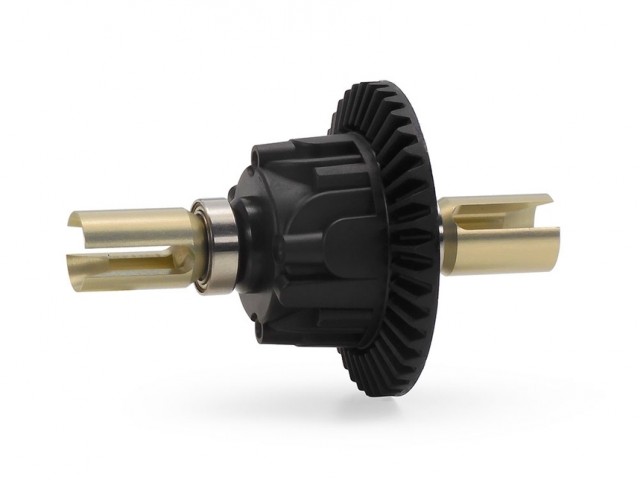

★The rear oil gear differential features lightweight yet durable alumiunum joint cups. |
 |
|
 |
|
★Left: The rear suspension setup can be altered using plastic bushings in the mount, fine-tuning toe and skid angles.

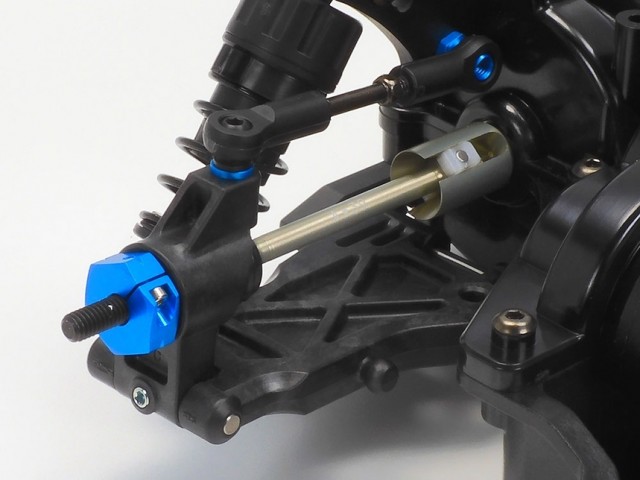

★Right: Rear 39mm drive shafts have been given a low-friction, highly durable hard coating.
|
 |
|
 |
|

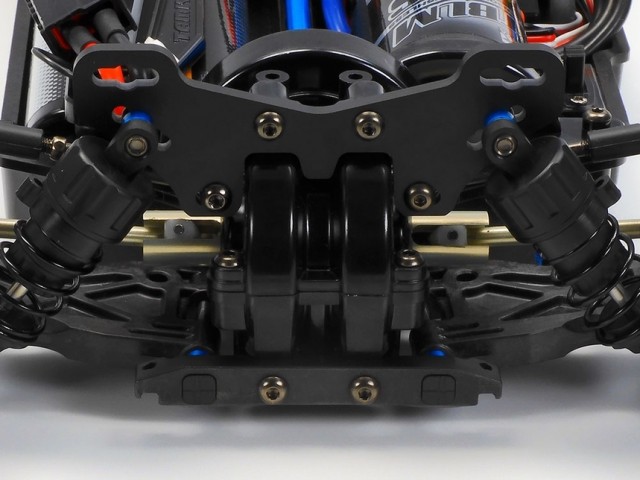

★Left: Dampers have 6 upper and 3 lower attachment position options.

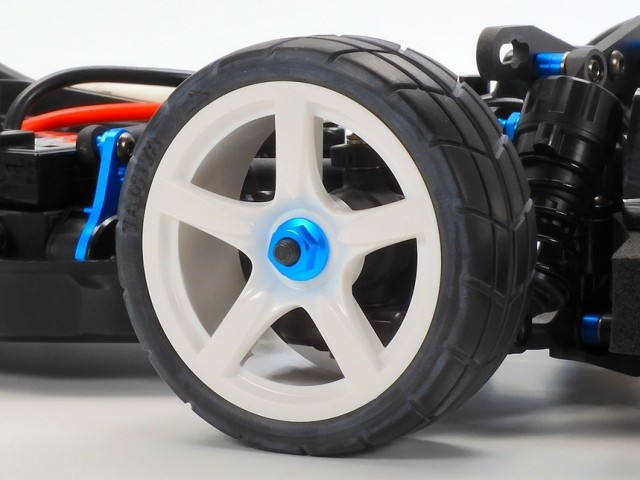

★Right: 5-spoke wheels are paired with blue anodized 4mm flanged lock nuts.
|
Specifications
★Length: 361mm, width: 183mm ★Wheelbase: 258mm ★Bathtub type frame ★Longitudinal motor, shaft driven 4WD ★Front direct coupling, rear oil gear differential ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★CVA oil dampers ★Gear ratio = 6.55:1 (with kit standard 27T pinion and 68T spur gears) ★Type 540 motor and electronic speed controller (ESC) are sold separately. |
Separately Required Items
★Body ★Brushless motor ★Tires ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
